Sunlight-Readable
OSD0700T5746-124

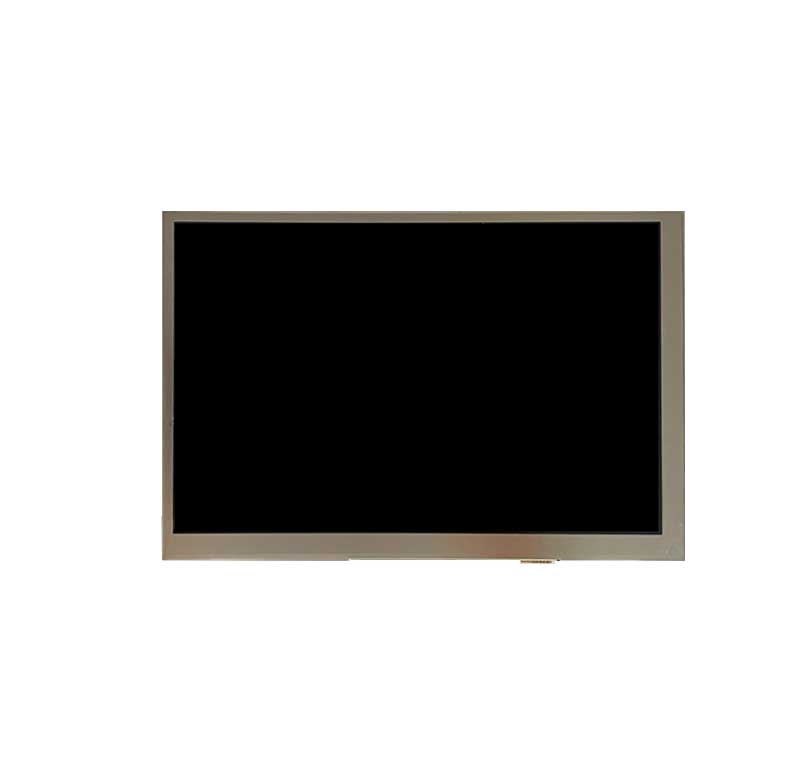

7.00" Free-View TFT-LCD Landscape WVGA ( 800 x 480 Pixels )
This 7.0 inch free-view TFT is features a WVGA 800xRGBx480 resolution utilizing a parallel RGB interface .This offering features a sunlight readable backlight brightness of 1000 nits luminance and an automotive grade temperature range.
- SKU:5746
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
7.00"
Resolution:
WVGA ( 800 x 480 Pixels )
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
166.660 x 105.800 x 7.500 mm
Active Area:
152.400 x 91.440 mm
Optical
Brightness:
1000 cd/m²
Electrical
Display Interface:
RGB
Lighting:
WHITE LED
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 90 ℃
Operating Temp:
-30 to 95 ℃
Lighting Life:
30,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
