50k Hours Rated

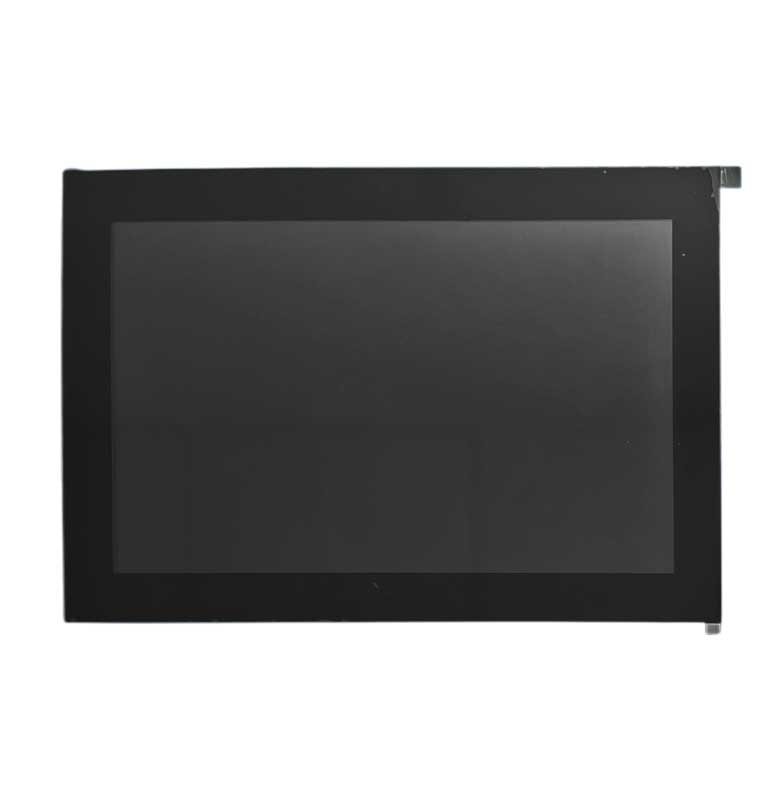

OSD1210T5697-128TS
12.10" Free-View TFT-LCD Landscape WXGA / HD ( 1280 x 800 Pixels )
This 12.1 inch free-view TFT is features a WXGA 1280xRGBx800 resolution utilizing a parallel 24-bit (16.7M color) LVDS interface .This offering features a moderate backlight brightness of 300 cd/m² luminance rated for 50k hours of operation in the field.
- SKU:5697
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
12.10"
Resolution:
WXGA / HD ( 1280 x 800 Pixels )
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
306.900 x 210.400 x 13.000 mm
Active Area:
261.120 x 163.200 mm
Pixel Size:
0.204 x 0.204 mm
Interconnect:
: 20-pin
Optical
Viewing Angles:
( 85 ↑ / 85 ↓ / 85 ← / 85 → )
Contrast Ratio:
1200 : 1
Brightness:
300 cd/m²
Electrical
Display Interface:
RGB, LVDS
Lighting:
WHITE LED ( 4 rows of 11 LEDs )
Response Time:
30 ms
Color Depth:
24-bit ( 16,777,216 colors )
Touchscreen
Touchscreen:
Capacitive (Projected)
Touch IC:
GT9110
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-20 to 70 ℃
Lighting Life:
50,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
