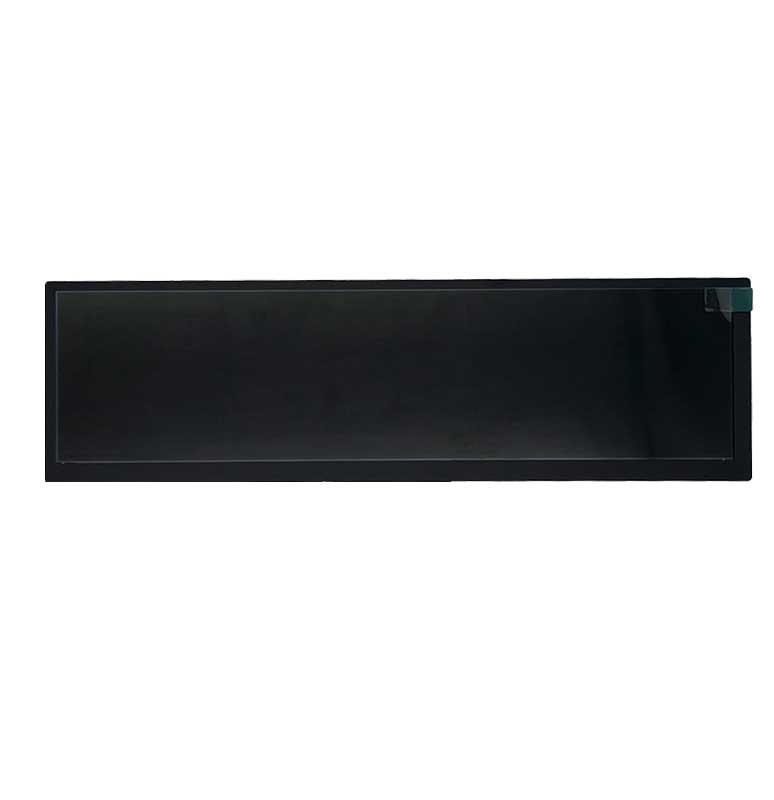

OSD0880T5690-128

8.80" Free-View TFT-LCD Landscape ( 1280 x 320 Pixels )

This 8.8 inch TFT is ultra-wide format (bar display) configuration. It features a free-view technology 1280xRGBx320 resolution utilizing a parallel 24-bit (16.7M color) LVDS interface . This configuration also features a sunlight readable 1200 cd/m² luminance.

SKU:5690
Category:TFT-LCD

References
Details

General

Technology:

Free-View TFT-LCD

Diagonal Size:

8.80"

Resolution:

1280 x 320 Pixels

Polarization Type:

Free-View ( IPS / MVA )

Mechanical

Outline:

229.660 x 67.500 x 3.500 mm

Active Area:

216.950 x 54.240 mm

Pixel Size:

0.1694 x 0.1694 mm

Interconnect:

Connector on Module : 40-pin

Optical

Viewing Angles:

( 80 ↑ / 80 ↓ / 80 ← / 80 → )

Contrast Ratio:

1500 : 1

Brightness:

1200 cd/m²

Electrical

Display Interface:

LVDS

Display IC:

EK79202B

Lighting:

WHITE LED ( 9 rows of 4 LEDs )

Response Time:

34 ms

Color Depth:

24-bit ( 16,777,216 colors )

Touchscreen

Touchscreen:

wo Touchscreen

Reliability

Storage Temp:

-30 to 80 ℃

Operating Temp:

-20 to 70 ℃

Lighting Life:

30,000 hrs
