Ultra-Wide
OSD0650T5676-128TS

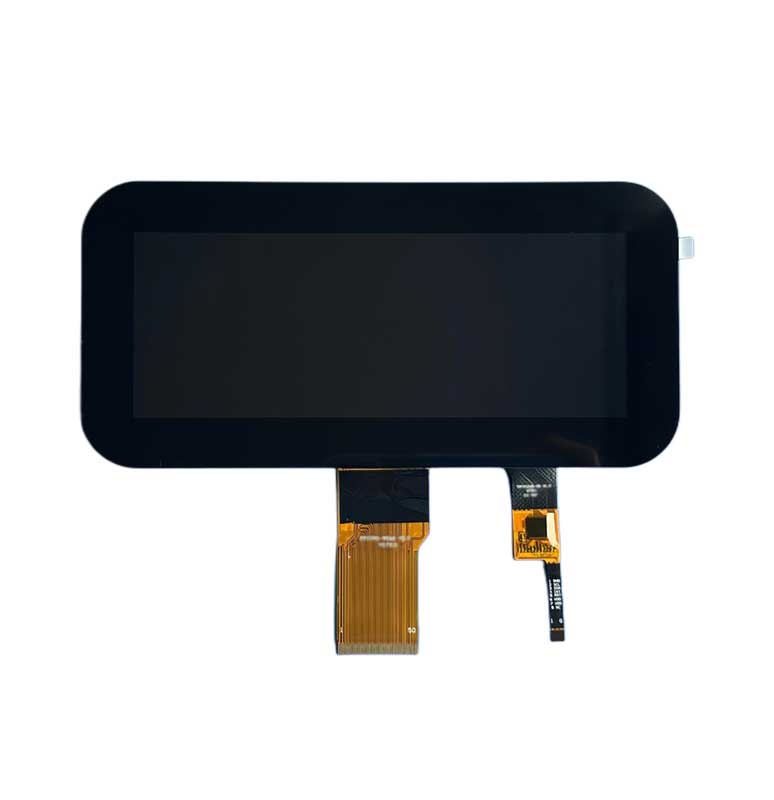

6.50" Free-View TFT-LCD Landscape ( 1024 x 400 Pixels )
This 6.5 inch TFT is ultra-wide format (bar display) configuration. It features a free-view technology 1024xxRGBx400 resolution utilizing a parallel 24-bit (16.7M color) RGB interface .This design also includes a projective capacitive multi-point detection touchscreen. The touch has embedded GT911 controller with I2C interface.
- SKU:5676
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
6.50"
Resolution:
1024 x 400 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
187.120 x 90.190 x 5.510 mm
Active Area:
154.210 x 57.280 mm
Pixel Size:
0.1506 x 0.1432 mm
Interconnect:
Connector on Module : 50-pin
Optical
Viewing Angles:
( 85 ↑ / 85 ↓ / 85 ← / 85 → )
Contrast Ratio:
800 : 1
Brightness:
500 cd/m²
Electrical
Display Interface:
RGB
Display IC:
HX8282-A11+HX8696-A01
Lighting:
WHITE LED ( 7 rows of 3 LEDs )
Response Time:
30 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
1,430 mW
Touchscreen
Touchscreen:
Capacitive (Projected)
Touch IC:
GT911
Touch Interface:
I²C
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-20 to 70 ℃
Lighting Life:
30,000 hrs
