Sunlight-Readable

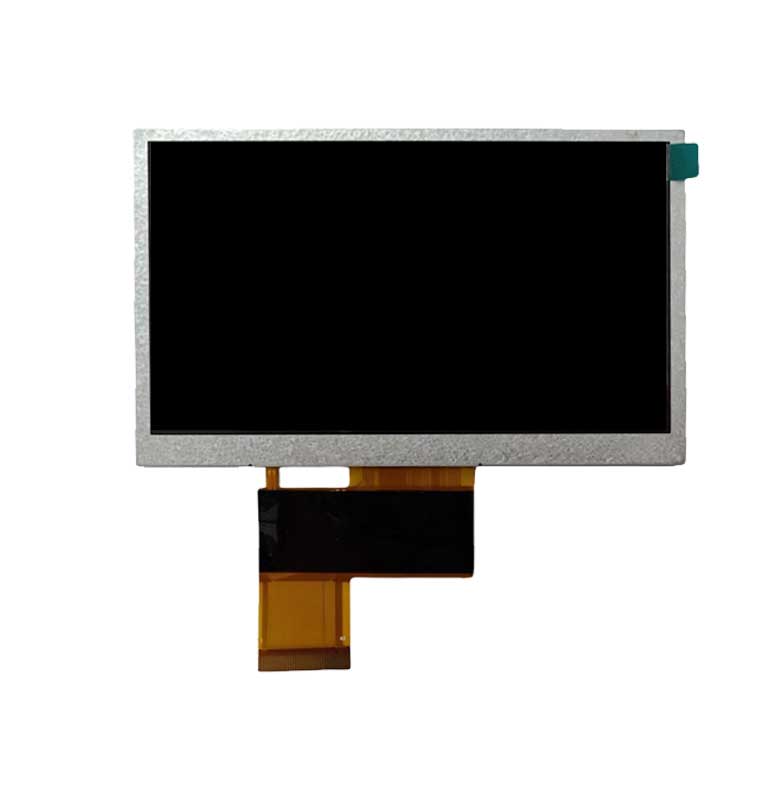

OSD0430T5658-128
4.30" Free-View TFT-LCD Landscape WQVGA ( 480 x 272 Pixels )
This full-view 4.3 inch TFT features WQVGA resolution (480xRGBx272) with 24-bit (16.7M color) RGB interface. This configuration is without touchscreen. This design is high brightness for sunlight readability utilizing a 1000 nits backlight.
- SKU:5658
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
4.30"
Resolution:
WQVGA ( 480 x 272 Pixels )
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
105.500 x 67.200 x 2.950 mm
Active Area:
95.040 x 53.860 mm
Pixel Size:
0.198 x 0.198 mm
Interconnect:
Connector on Module : 40-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
800 : 1
Brightness:
1000 cd/m²
Electrical
Display Interface:
RGB
Lighting:
WHITE LED ( 2 rows of 8 LEDs )
Response Time:
30 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
10,000 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-30 to 80 ℃
Lighting Life:
30,000 hrs
