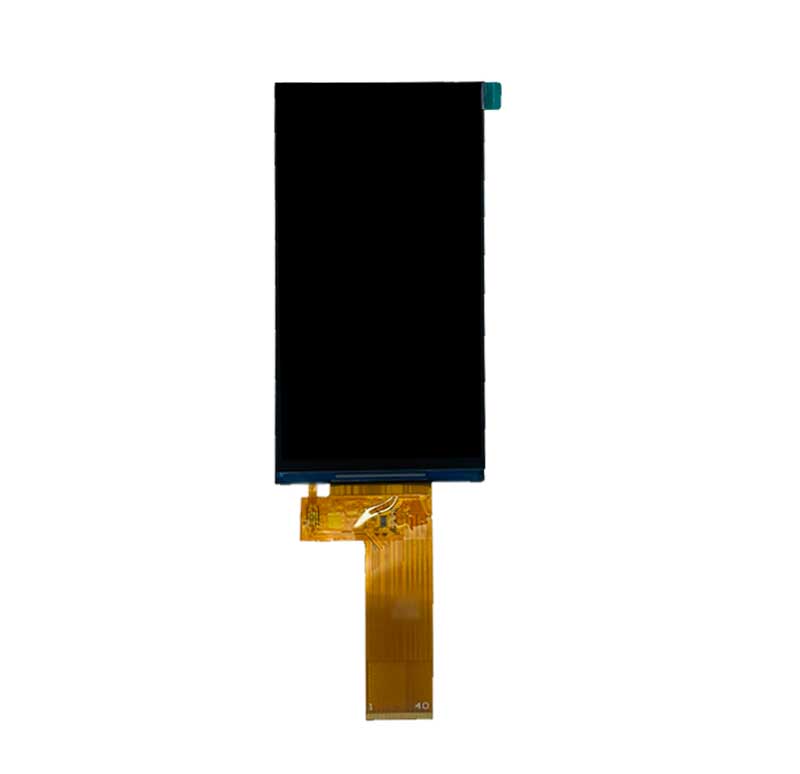

OSD0500T5584-124
5.00" Free-View TFT-LCD Portrait WXGA / HD ( 720 x 1280 Pixels )
This 5.0 inch TFT is free-view technology and HD (720xRGBx1280) resolution utilizing a MIPI differential interface . This build features a moderate 350 nit backlight suitable for climate controlled industrial applications..
- SKU:5584
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
5.00"
Resolution:
WXGA / HD ( 720 x 1280 Pixels )
Polarization Type:
Free-View ( IPS / MVA )
Weight
26.00 grams
Mechanical
Outline:
64.700 x 118.800 x 1.570 mm
Active Area:
62.100 x 110.400 mm
Pixel Size:
0.086 x 0.086 mm
Interconnect:
Flex (Connector Type) : 40-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
720 : 1
Brightness:
350 cd/m²
Electrical
Display Interface:
MIPI
Display IC:
ST7703 OR COMPATIBLE
Lighting:
WHITE LED ( 2 rows of 6 LEDs )
Response Time:
30 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
870 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-20 to 70 ℃
Lighting Life:
30,000 hrs
