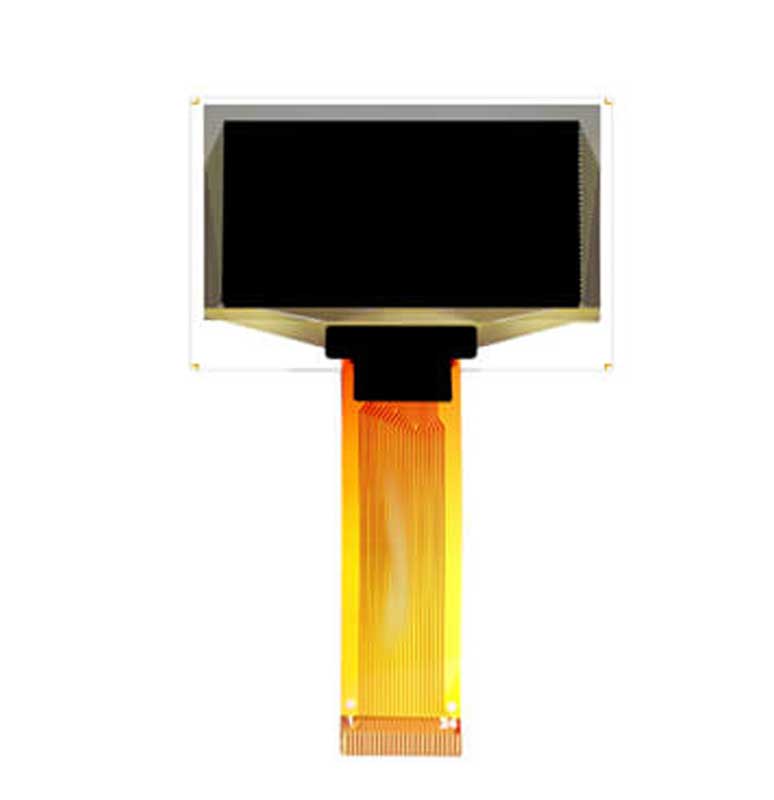

OSD12864P0549-21
1.54" WHITE PMOLED Landscape ( 128 x 64 Pixels )
OSD12864P0549-21 is a monochrome White OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:549
- Category:PMOLED
General
Technology:
WHITE PMOLED
Diagonal Size:
1.54"
Resolution:
128 x 64 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
3.23 grams
Mechanical
Outline:
42.040 x 70.620 x 1.450 mm
Active Area:
35.052 x 17.520 mm
Pixel Size:
0.274 x 0.274 mm
Interconnect:
Flex (Connector Type) : 24-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
100 cd/m²
Electrical
Display Interface:
CPU, SPI, I²C
Display IC:
SSD1305Z
Lighting:
WHITE
Response Time:
0.01 ms
Color Depth:
275 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 85 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
20,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
