Ultra-Wide
OSD0880T5489-128

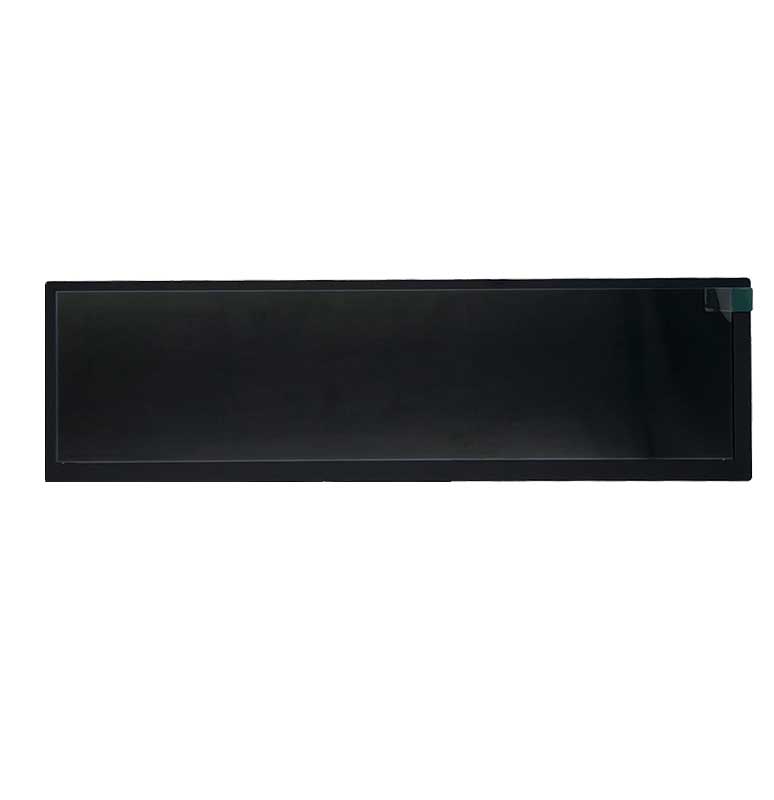

8.80" Free-View TFT-LCD Landscape ( 1280 x 320 Pixels )
This 8.8 inch TFT is ultra-wide format (bar display) configuration. It features a free-view technology 1280xRGBx320 resolution utilizing a parallel 24-bit (16.7M color) LVDS interface .This version is the more moderate industrial brightness of 400 cd/m² luminance.
- SKU:5489
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
8.80"
Resolution:
1280 x 320 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
229.660 x 67.500 x 3.500 mm
Active Area:
216.960 x 54.240 mm
Pixel Size:
0.1695 x 0.1695 mm
Interconnect:
Connector on Module : 40-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
1500 : 1
Brightness:
400 cd/m²
Electrical
Display Interface:
LVDS
Display IC:
EK79202
Lighting:
WHITE LED ( 4 rows of 9 LEDs )
Response Time:
24 ms
Color Depth:
1,944 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-30 to 85 ℃
Operating Temp:
-30 to 85 ℃
Lighting Life:
30,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
