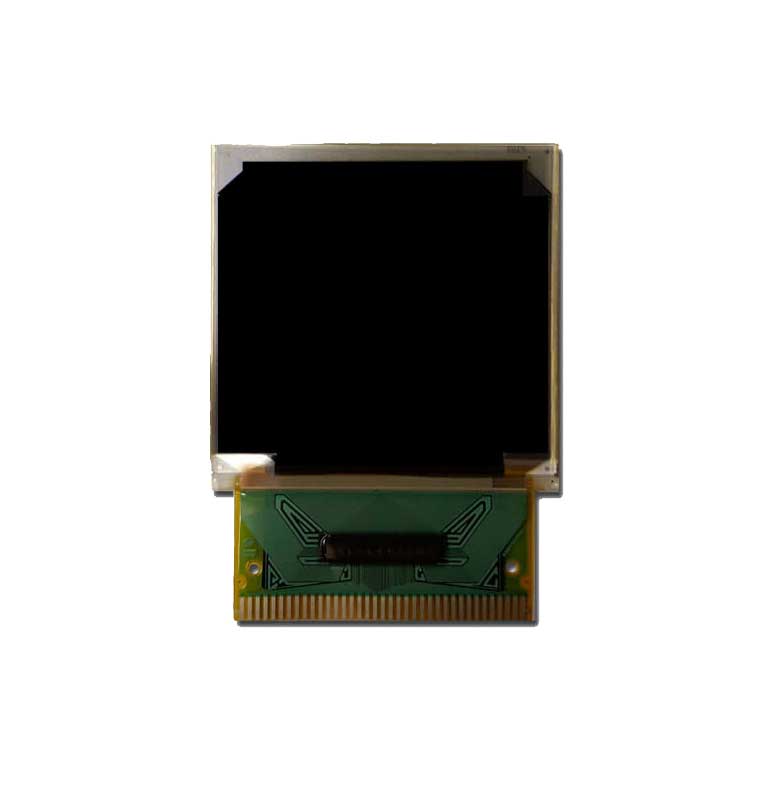

OSD128128P0427-21
1.46" RGB PMOLED Portrait ( 128 x 128 Pixels )
OSD128128P0427-21 is a full color OLED display module with 128(RGB) ×128 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:427
- Category:PMOLED
General
Technology:
RGB PMOLED
Diagonal Size:
1.46"
Resolution:
128 x 128 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
3.86 grams
Mechanical
Outline:
33.500 x 46.330 x 1.610 mm
Active Area:
26.279 x 26.280 mm
Pixel Size:
0.0685 x 0.2055 mm
Interconnect:
Flex (Solder Type) : 37-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
100 cd/m²
Electrical
Display Interface:
CPU, SPI
Display IC:
SSD1355
Lighting:
RGB
Response Time:
0.01 ms
Color Depth:
18-bit ( 262,144 colors )
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 85 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
10,000 hrs
