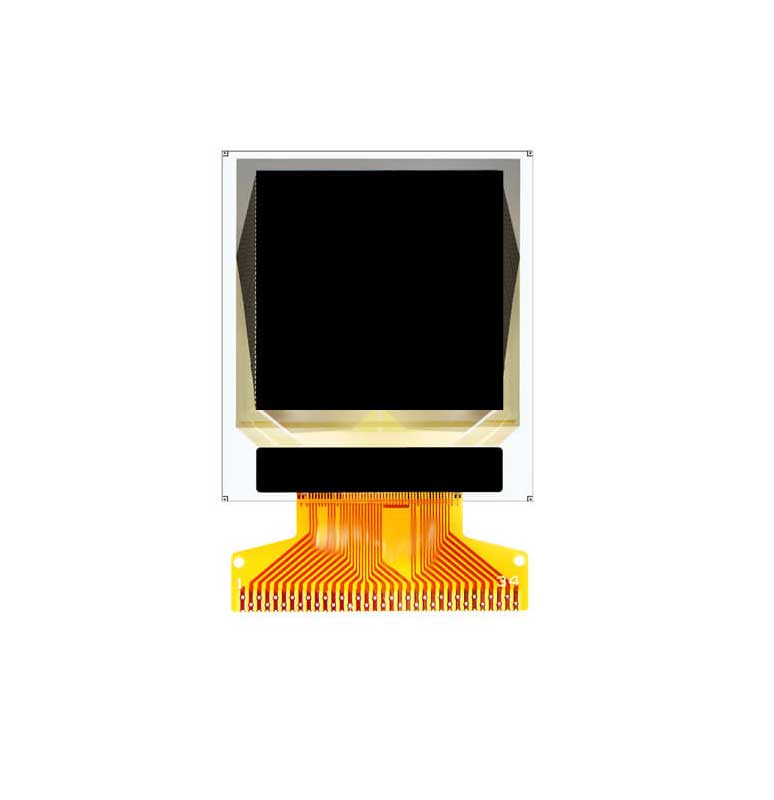

OSD9696P0418-21
1.12" RGB PMOLED Portrait ( 96 x 96 Pixels )
OSD9696P0418-21 is a Full Color OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:418
- Category:PMOLED
General
Technology:
RGB PMOLED
Diagonal Size:
1.12"
Resolution:
96 x 96 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
2.05 grams
Mechanical
Outline:
27.000 x 30.100 x 1.250 mm
Active Area:
20.135 x 20.140 mm
Pixel Size:
0.07 x 0.21 mm
Interconnect:
Flex (Solder Type) : 31-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
80 cd/m²
Electrical
Display Interface:
CPU
Display IC:
SEPS114A
Lighting:
RGB
Response Time:
0.01 ms
Color Depth:
16-bit ( 65,536 colors )
Color Depth:
221 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 80 ℃
Operating Temp:
-40 to 70 ℃
Lighting Life:
13,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
