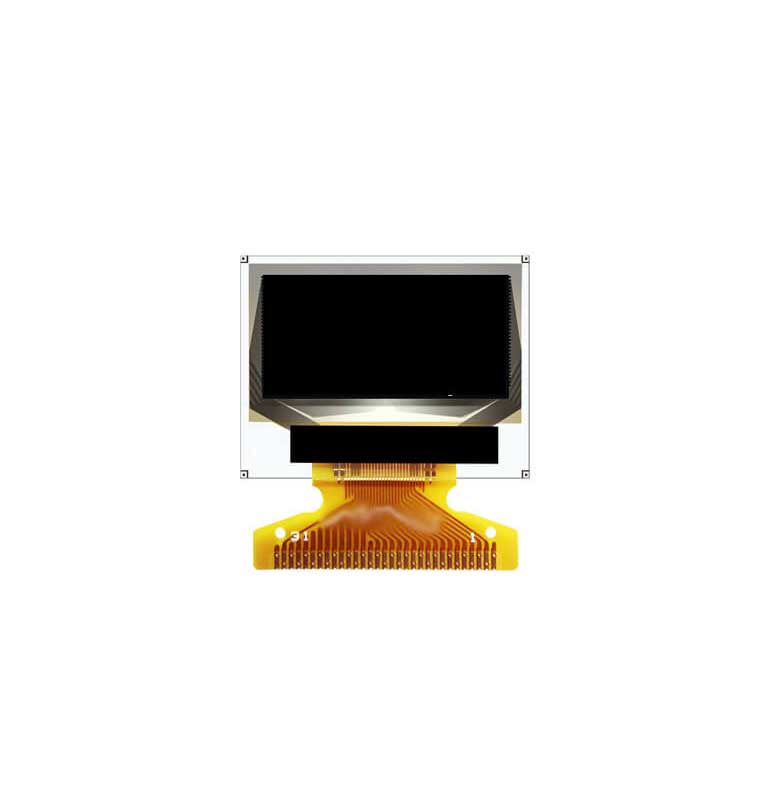

OSD12864P0414-21
1.01" WHITE PMOLED Landscape ( 128 x 64 Pixels )
OSD12864P0414-21 is a monochrome White OLED display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
- SKU:414
- Category:PMOLED
General
Technology:
WHITE PMOLED
Diagonal Size:
1.01"
Resolution:
128 x 64 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Weight
1.93 grams
Mechanical
Outline:
28.220 x 21.630 x 1.600 mm
Active Area:
23.020 x 11.500 mm
Pixel Size:
0.18 x 0.18 mm
Interconnect:
Flex (Solder Type) : 31-pin
Optical
Viewing Angles:
( 80 ↑ / 80 ↓ / 80 ← / 80 → )
Contrast Ratio:
2000 : 1
Brightness:
120 cd/m²
Electrical
Display Interface:
CPU, SPI, I²C
Display IC:
SSD1305
Lighting:
WHITE
Response Time:
0.01 ms
Color Depth:
1-bit ( 2 colors )
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-30 to 70 ℃
Lighting Life:
20,000 hrs
Reference Documentation
Online Documentation Feature Is Coming Soon.
