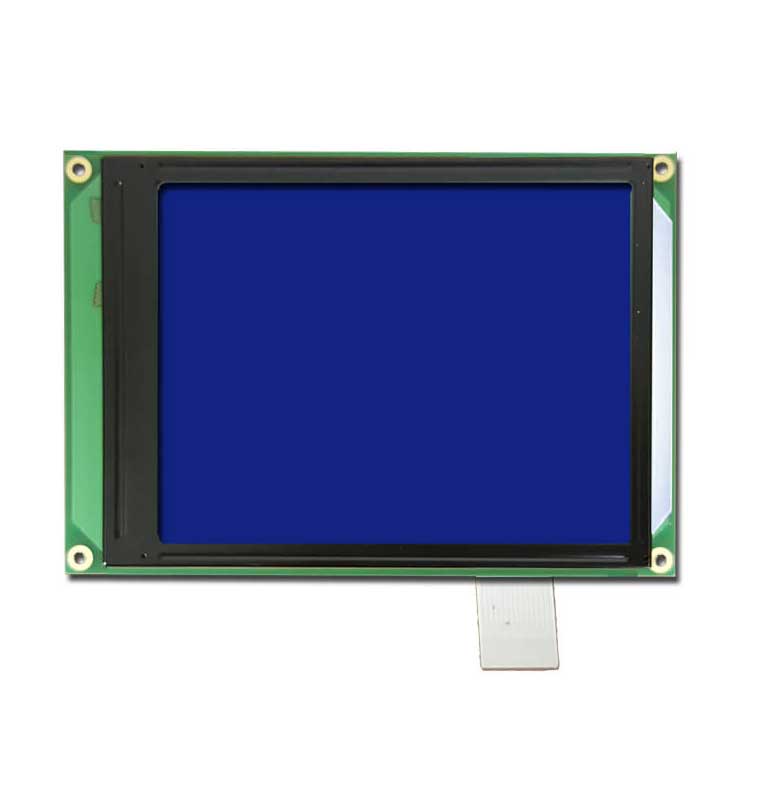

OSD320240S2335-51

5.67" Transmissive STN-LCD Landscape QVGA ( 320 x 240 Pixels )

OSD320240S2335-51 is a transmissive Blue monochrome STN-LCD. The characteristics of this display are high contrast and low power.


  • SKU:2335
  • Category:STN-LCD
General
Technology:
Transmissive STN-LCD
Diagonal Size:
5.67"
Resolution:
QVGA ( 320 x 240 Pixels )
Polarization Type:
STN Negative (Blue Mode)
Weight
176.00 grams
Mechanical
Outline:
160.000 x 109.000 x 13.500 mm
Active Area:
115.170 x 86.370 mm
Pixel Size:
0.36 x 0.36 mm
Interconnect:
Flex (Connector Type) : 14-pin
Optical
Viewing Angles:
( 25 ↑ / 25 ↓ / 35 ← / 35 → )
Contrast Ratio:
5 : 1
Brightness:
30 cd/m²
Electrical
Display Interface:
CPU
Display IC:
NT7701
Lighting:
BLUE LED ( 1 rows of 6 LEDs )
Response Time:
140 ms
Color Depth:
1-bit ( 2 colors )
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-30 to 80 ℃
Operating Temp:
-20 to 70 ℃
