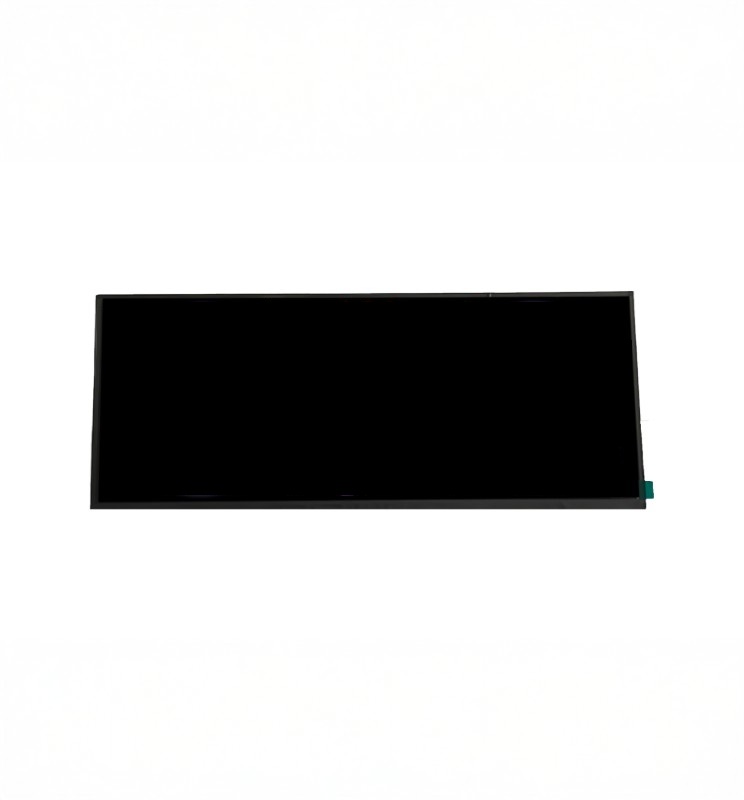

OSD1230T5695-128
12.30" Free-View TFT-LCD Landscape ( 1920 x 720 Pixels )
This 12.3 inch diagonal TFT-LCD is a superb solution for ultra-wide aspect ratio systems including rackmount devices, set top boxes, benchtop devices, white goods, and much more.
- SKU:5695
- Category:TFT-LCD
General
Technology:
Free-View TFT-LCD
Diagonal Size:
12.30"
Resolution:
1920 x 720 Pixels
Polarization Type:
Free-View ( IPS / MVA )
Mechanical
Outline:
302.100 x 125.500 x 6.350 mm
Active Area:
292.030 x 109.510 mm
Pixel Size:
0.1521 x 0.1521 mm
Optical
Viewing Angles:
( 85 ↑ / 85 ↓ / 85 ← / 85 → )
Contrast Ratio:
1500 : 1
Brightness:
1000 cd/m²
Electrical
Display Interface:
RGB, LVDS
Lighting:
WHITE LED ( 4 rows of 11 LEDs )
Response Time:
25 ms
Color Depth:
24-bit ( 16,777,216 colors )
Color Depth:
1,346 mW
Touchscreen
Touchscreen:
wo Touchscreen
Reliability
Storage Temp:
-40 to 90 ℃
Operating Temp:
-35 to 85 ℃
Lighting Life:
50,000 hrs
